Note: This configuration guide utilizes the “Partner organization” connector type and is suitable for both older and newer O365 tenants. If your Microsoft/O365 tenant is older than Jan 1, 2023 and you need to use the “You organization” connector type, please refer to our guide for older O365 tenants.
Step 1 – Navigating to “Email Relay Integration”
First, you will need to log into the Trustifi web portal using your admin credentials.
Once logged in, click on “Inbound Management” on the left side navigation bar and then click on the “Plan Settings” page.
Make sure the selected architecture is “via Email Relay“. If you want to create the inbound mail flow integration using an MX record, please see our MX integration guide.

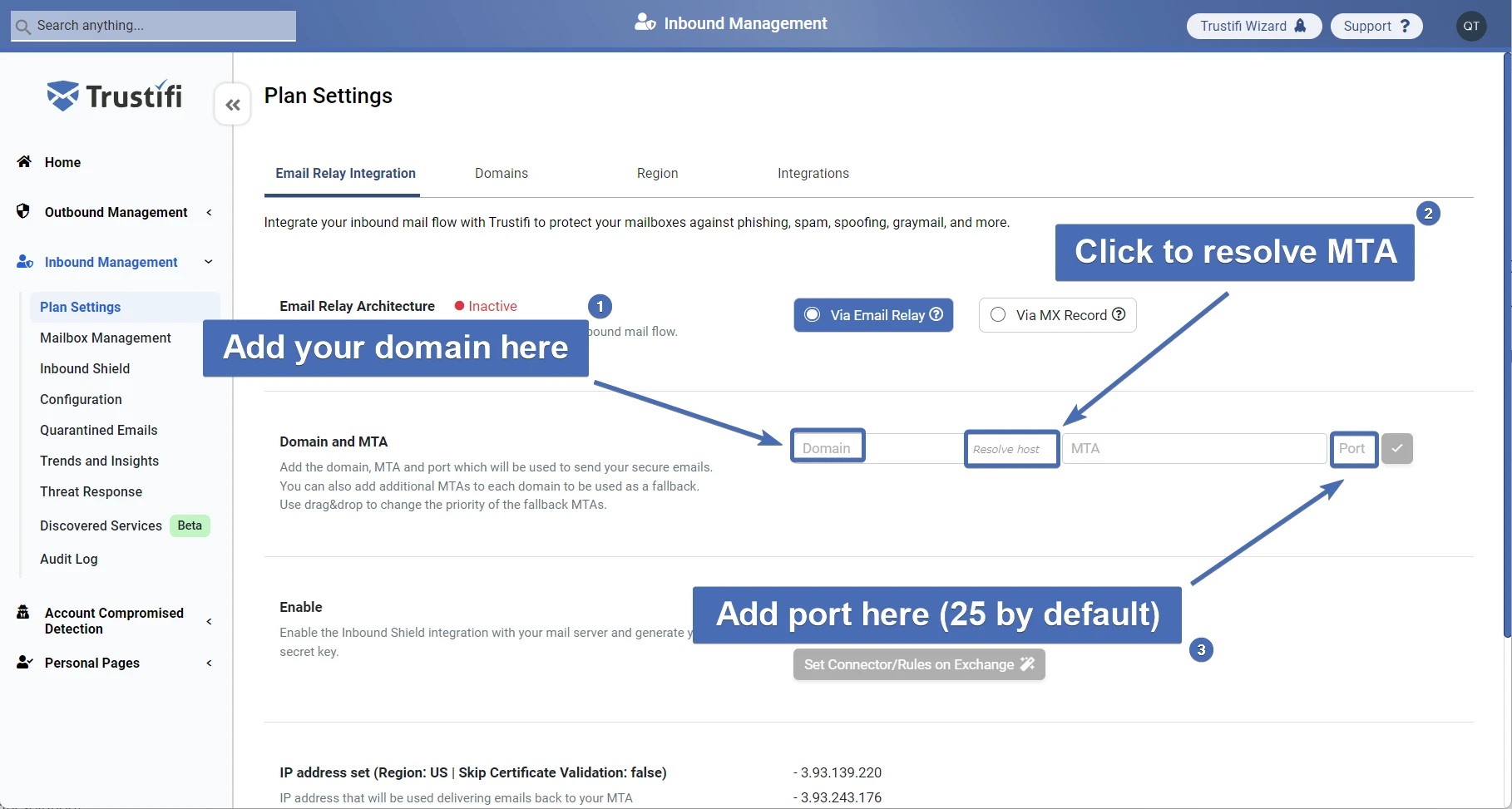

Step 2 – Adding your domain, MTA, and port
Under the “Email Relay Integration” section you will need to enter your domain, Mail Transfer Agent (MTA) and port.
If you are not sure what your MTA is, you can click “resolve host” to auto-fill the “MTA” field.
The port number will usually be 25.
Note: If you have several domains which should be protected you can add multiple domains with their corresponding MTAs. For each domain, up to 3 MTAs can be added – the first MTA will be used by default and the other 2 will be used as a fallback in case the first MTA fails.

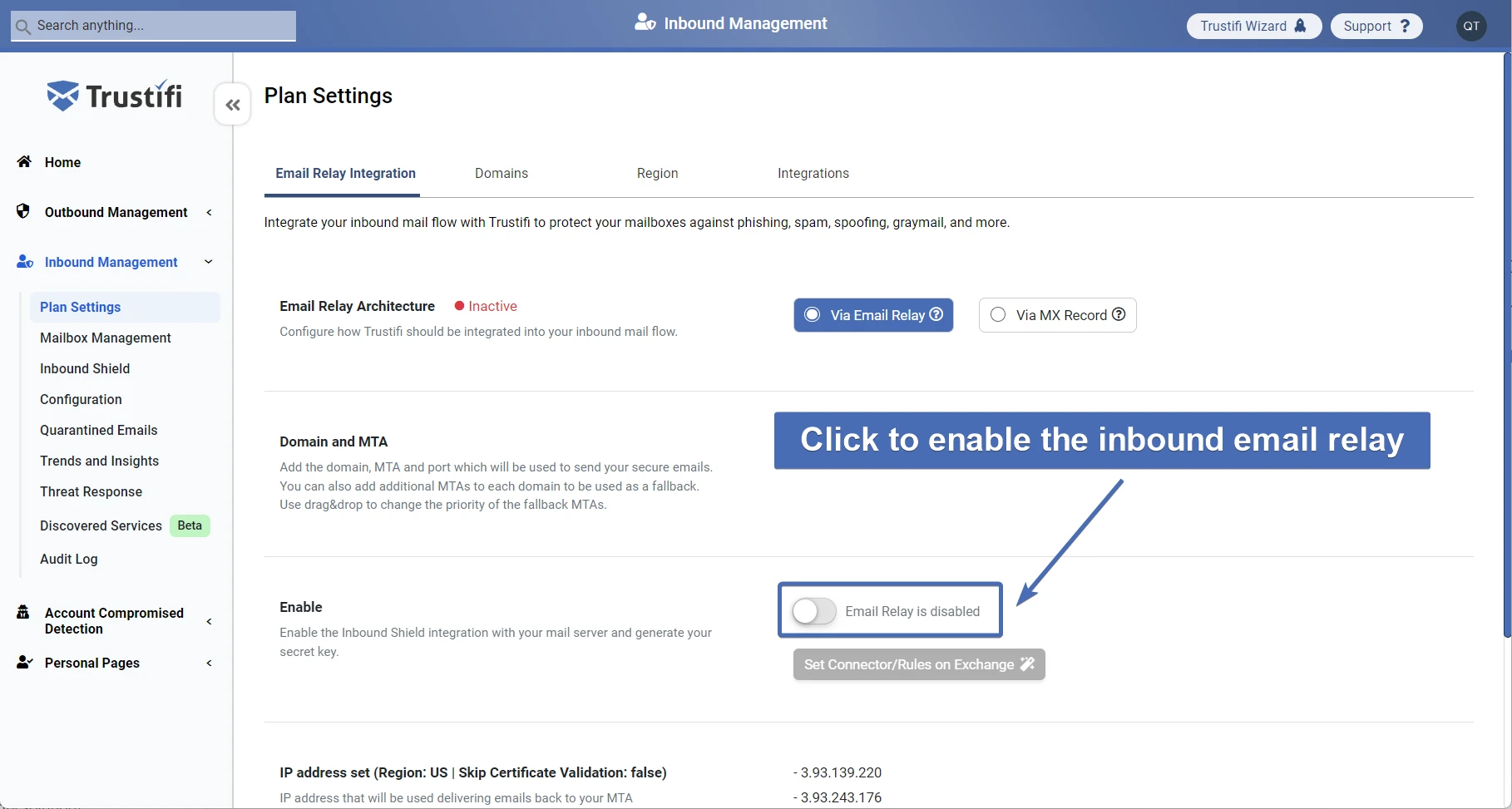

Step 3 – Enabling the Inbound Email Relay
After your domain, MTA, and port have been added, simply click the “Enable” toggle and confirm in the pop-up window

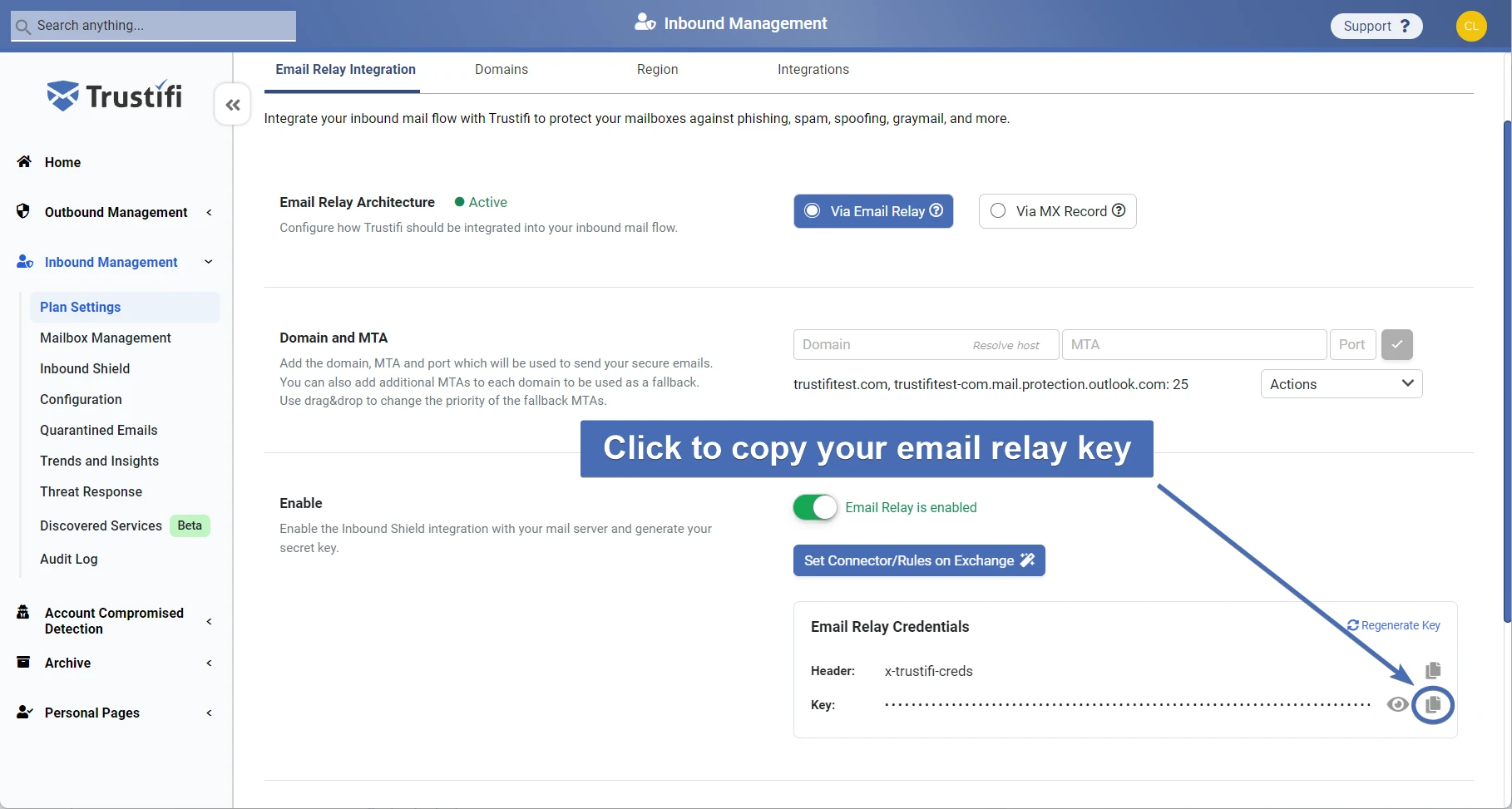

After the Inbound Email Relay has been enabled, your Email Relay key will be generated. You can copy this key now to use it later in configuration.
Note: This action will not yet change anything in your server’s inbound mail flow. Mail traffic will only be routed through Trustifi after the mail-flow rule and connectors have been set up.
Step 4 – Navigating to the Exchange Admin Center – Mail flow connectors
Navigate and log into the “Exchange admin center” using your admin credentials.
After you have logged in, navigate to the “Mail flow” – “Connectors” page.
Step 5 – Creating the “receive” connector
Click on the “Add a new connector” button to open the “New connector” interface.
Step 6 – Selecting a mail flow scenario
Under “Connection from” select “Partner organization” and under “Connection to” select the default option “Office 365”.
Continue by clicking on “Next“.
Step 7 – Naming and describing the connector
In the “Name” field enter the following name – “Trustifi Inbound Connector (Receive)”.
In the “Description” field you can add any description you like (optional). Make sure the “Turn it on” box is checked.
You can continue by clicking on “Next”.

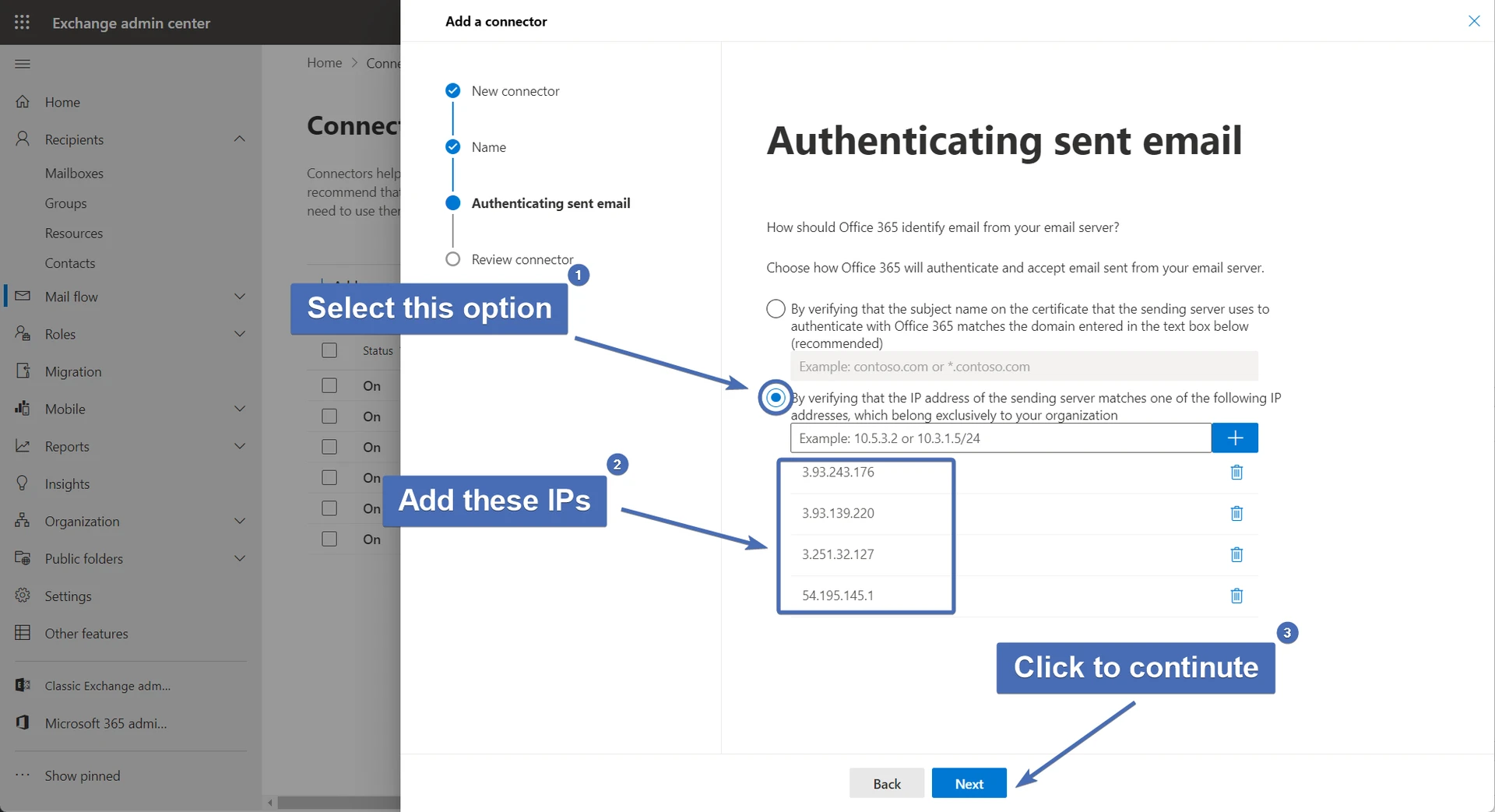

Step 8 – Authenticating sent email
Here you need to select “By verifying that the IP address of the sending server matches one of these IP addresses that belong to your organization”.
Add the following IPs and click on the “+” button to add each one:
-
- 3.93.243.176
- 3.93.139.220
- 3.251.32.127
- 54.195.145.1
After both IPs have been added, click on “Next” to continue.
Step 9 – Security restrictions
Make sure the “Reject email messages if they aren’t sent over TLS” box is checked, then click “Next” to continue.

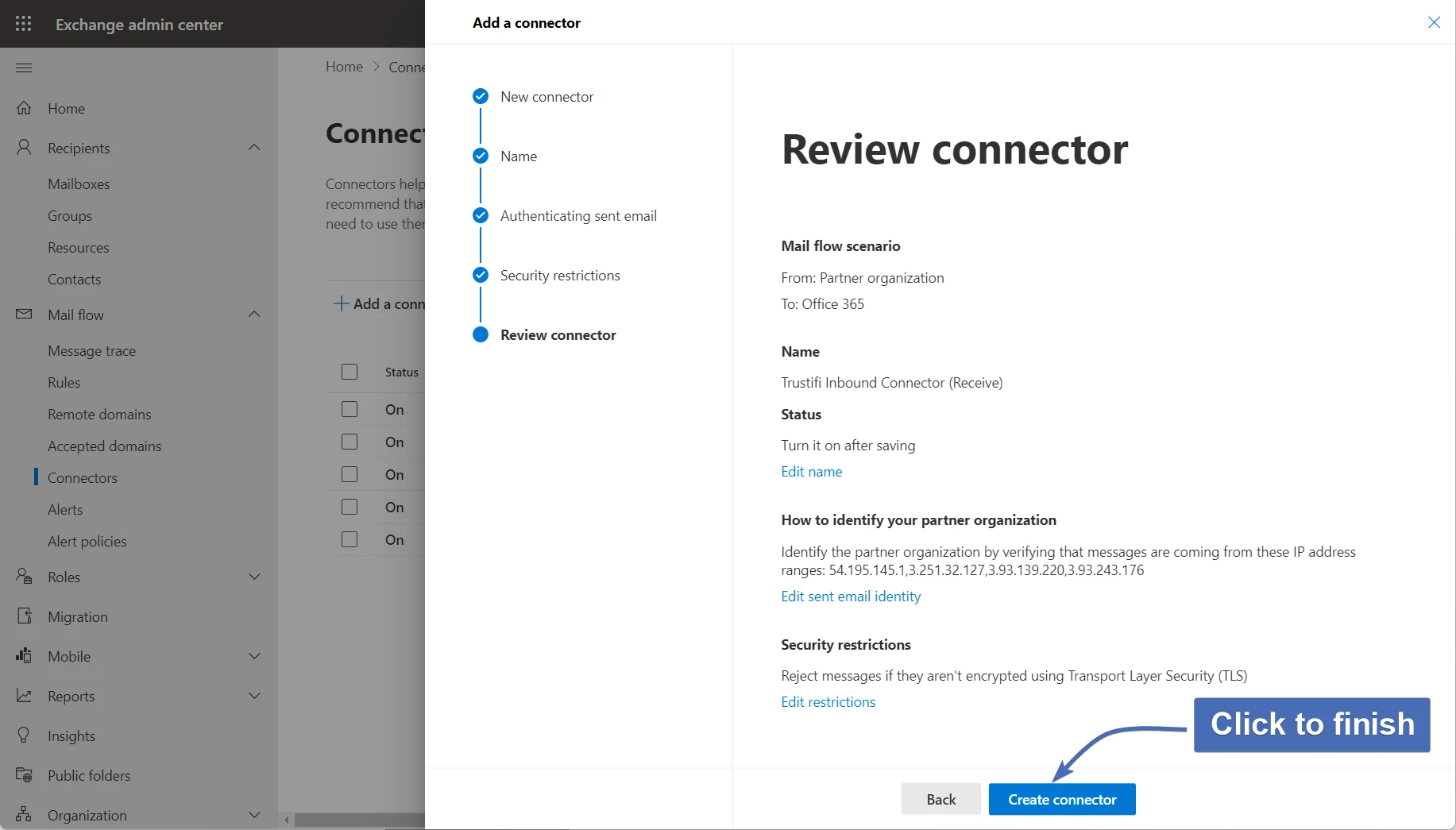

Step 10 – Reviewing the connector
Confirm that all settings are correct and finish by clicking on “Create connector”.
Step 11 – Confirming the connector has been added
Confirm the “Trustifi Inbound Connector (Receive)” connector has been added to the connector list.

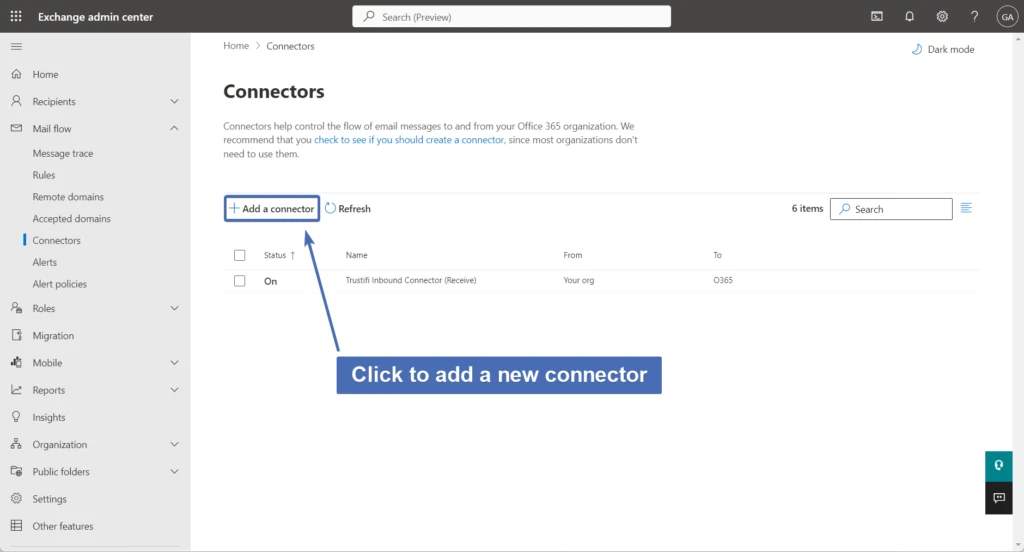

Step 12 – Creating the “send” connector
Click on the “Add a connector” button to create a new connector.

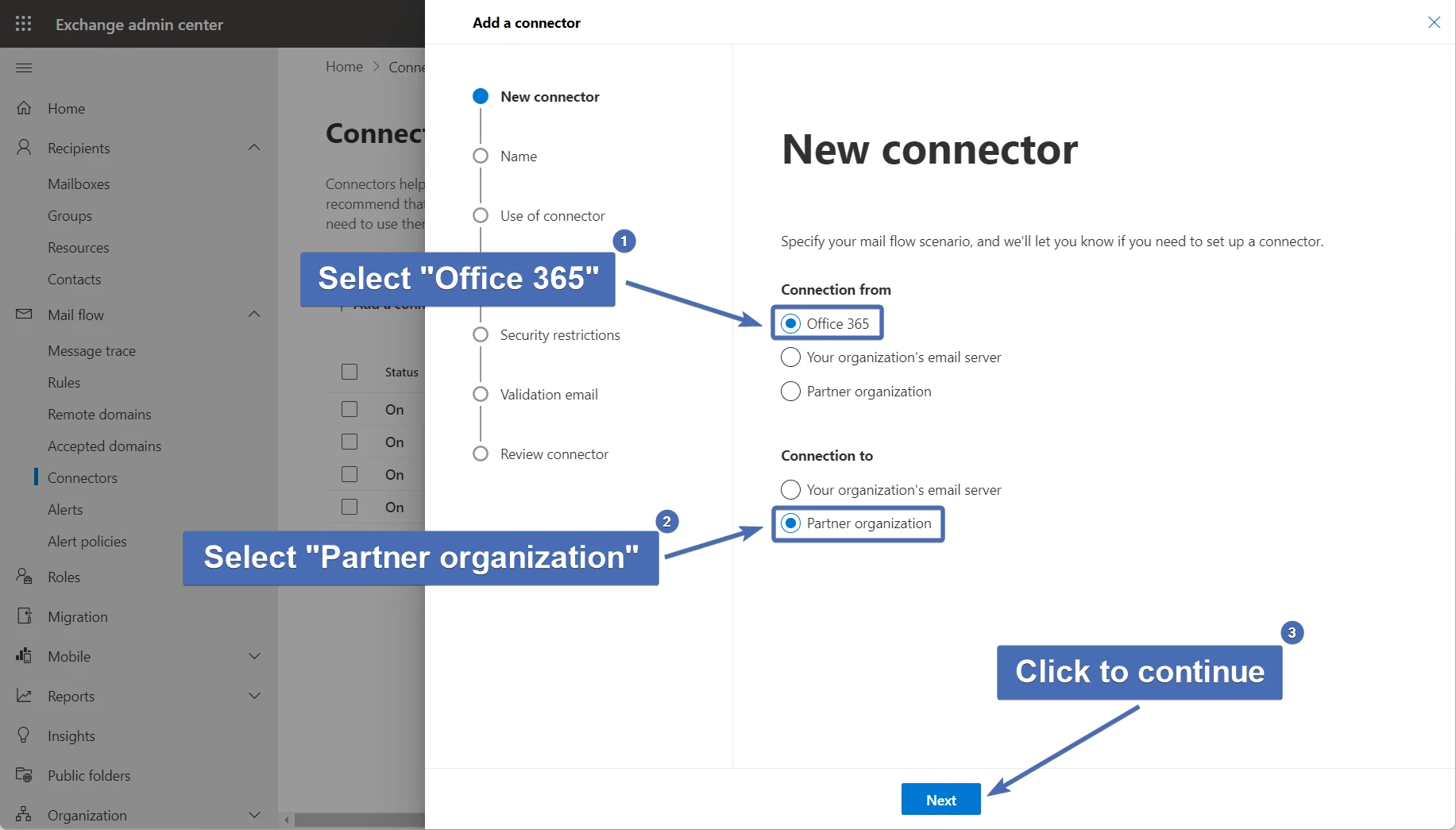

Step 13 – Selecting a mail flow scenario
Here, you will need to select the mail flow scenario.
Under “Connection from” select “Office 365”, and under “Connection to” select “Partner organization” and continue by clicking “Next”.

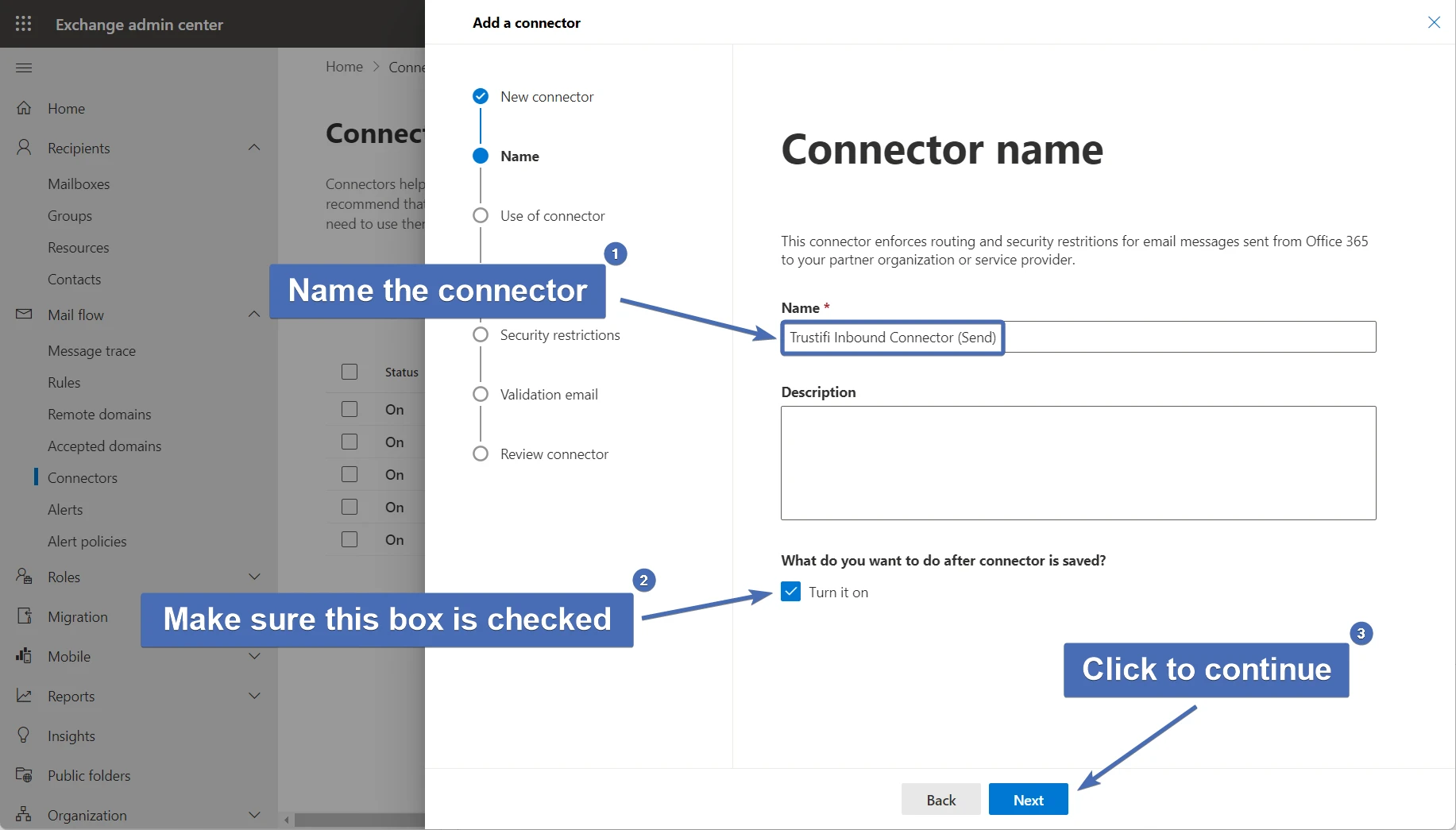

Step 14 – Naming and describing the connector
In the “Name” field enter the following name – “Trustifi Inbound Connector (Send)”.
In the “Description” field you can add any description you like (optional). Make sure the “Turn it on” box is checked
Step 15 – Use of connector
Select “Only when I have transport rule set up that redirects message to this connector” and continue by clicking “Next”
Step 16 – Routing
Here we will need to add the smart host to which emails will be routed.
In the input field, add the following smart host:
inbound-smtp.trustifi.com
Then, click on the “+” icon to add the smart host and click “Next” to continue.
Step 17 – Security restrictions
Now we will need to configure the smart host security settings:
-
- Select “Always use TLS” (First checkbox)
- Select “Issued by a trusted certificate authority(CA)”
- Check the box for “Add the subject name of subject alternative name (SAN) matches this domain name“
- Enter the following value into the input field: *.trustifi.com

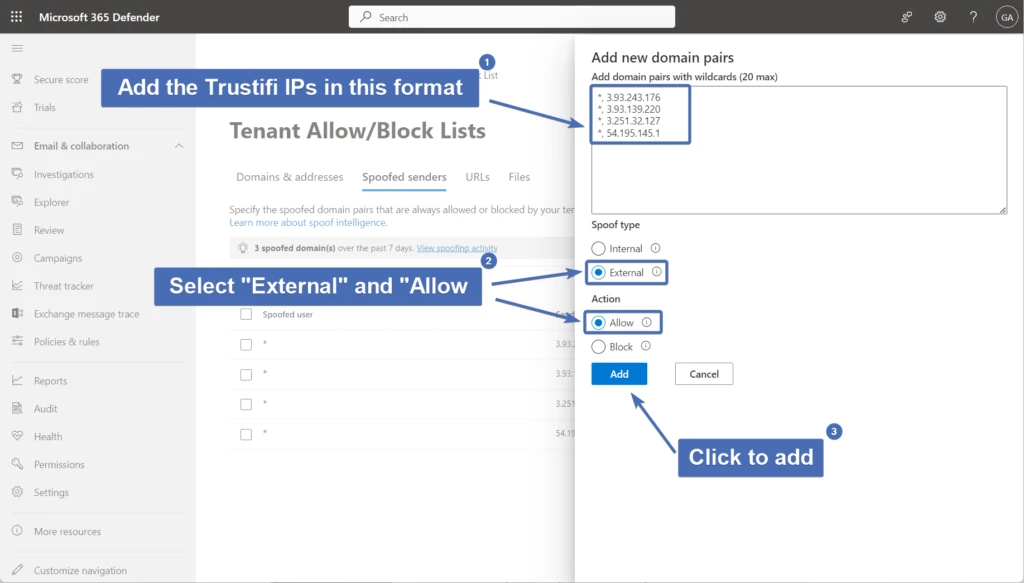

Step 33 – Configuring the external allow list
Click on the “Add” button to add a new allow list.
In the pop-up, perform the same steps as before with one exception:
In the “Spoof type” section, select “External” instead of “Internal“.
Creating a mail flow rule
Step 34 – Creating a new rule
Now we will need to create a new rule to use the connector.
First, go back to the Exchange admin center and navigate to the “Rules” page under “Mail flow“.
Then click on “Add a rule“.
Step 35 – Naming the rule
First, name the new mail flow rule that will be used for the Trustifi inbound relay.
Step 36 – First condition: recipient domain
Under “Apply this rule if“, select “The recipient“. Then, in the 2nd menu, select “domain is“.
Step 37 – Selecting the recipient domain
Add the domain that will be used to receive emails through Trustifi Email Relay. If you have multiple domains under your tenant, add them all here.
After the domain has been added, click on “Save“.
Step 38 – Adding a new condition
Add a new condition by clicking on the “+” icon next to the first condition.
Step 39 – Second condition: recipient location
Once again select “The recipient” and then select “Is external/internal”.
Step 40 – Selecting recipient location
Under “Select sender location“, choose “Inside the organization“.
Then, click on “Save“.
Step 41 – First action: redirect to connector
Now we will start selecting the actions to be taken by this rule.
Note: this guide provides instructions for enabling full protection for inbound emails. If you want to enable Inbound Shield in “Journal” mode only, please see our “Journaling Mode” guide .
Under “Do the following” – select “Redirect the message to” and then select “the following connector“.
Step 42 – Selecting connector redirection
Under “Select connector“, choose the Trustifi inbound send connector which was created earlier.
Then, click on “Save“.
Step 43 – Adding a new action
Add new action by clicking on the “+” icon next to the first action.
Step 44 – Second action: set a message header
For the new action, select “Modify the message properties” and then select “set a message header“.
Step 45 – Setting the header name
Click on the first “Enter text” link and add the following input: x-trustifi-creds
Then, click on “Save“.
Step 46 – Setting the header value
Click on the second “Enter text” link, and there add the email relay secret key which you copied in step 3.
Then, click on “Save“.
Step 47 – Third action: Require TLS encryption
First, add a new action for the rule. Then select “Modify the message security” and “Require TLS encryption“.
Step 48 – Fourth action: bypassing spam filtering
Add a new action for the rule. Then select “Modify the message properties” and “Set the spam confidence level (SCL)“
Step 49– Selecting spam bypass
In the “Specify SCL” window, select “Bypass spam filtering“.
Then, click “Save“.
Step 50 – Adding an exception: custom header
Here we will add a couple of exceptions to this mail flow rule to avoid processing emails which have already been sent by Trustifi. This is to avoid email loops.
Under “Except if“, select “The message headers” and then select “includes any of these words“.
Step 51 – Setting the exception header name
Click on the first “Enter text” link and in the pop-up window enter “x-trustifi-inbound-processed” (without the double quotes).
Click on “Save” to confirm.
Step 52 – Setting the exception header value
Click on “Enter words” and in the pop-up window enter the word “yes” (without the double quotes).
Then click on the “+” icon and “Save” to confirm.
Step 53 – Creating the 2nd exception
Click on the “+” icon next to the first exception to add another exception.
Then select “The sender”, and “IP address is in any of these ranges or exactly matches”.
Step 54 – Adding the exception IPs
In the “specify IP address ranges” window, enter the following IPs:
- 3.93.243.176
- 3.93.139.220
- 54.195.145.1
- 3.251.32.127
Then, click on “Save“.
Step 55 – Verifying the settings
After both exceptions have been created, take a moment to verify all conditions, actions, and exceptions are correct.
If everything looks good, click on “Next“.
Step 56 – Rule settings
Set the following additional settings:
- Under “Severity” – select “High“
- Check the box for “Stop processing more rules“
- Check the box for “Defer the message if rule processing doesn’t complete
- Under “Match sender address in message“- select “Header and envelope“
Once finished, click on “Next“.

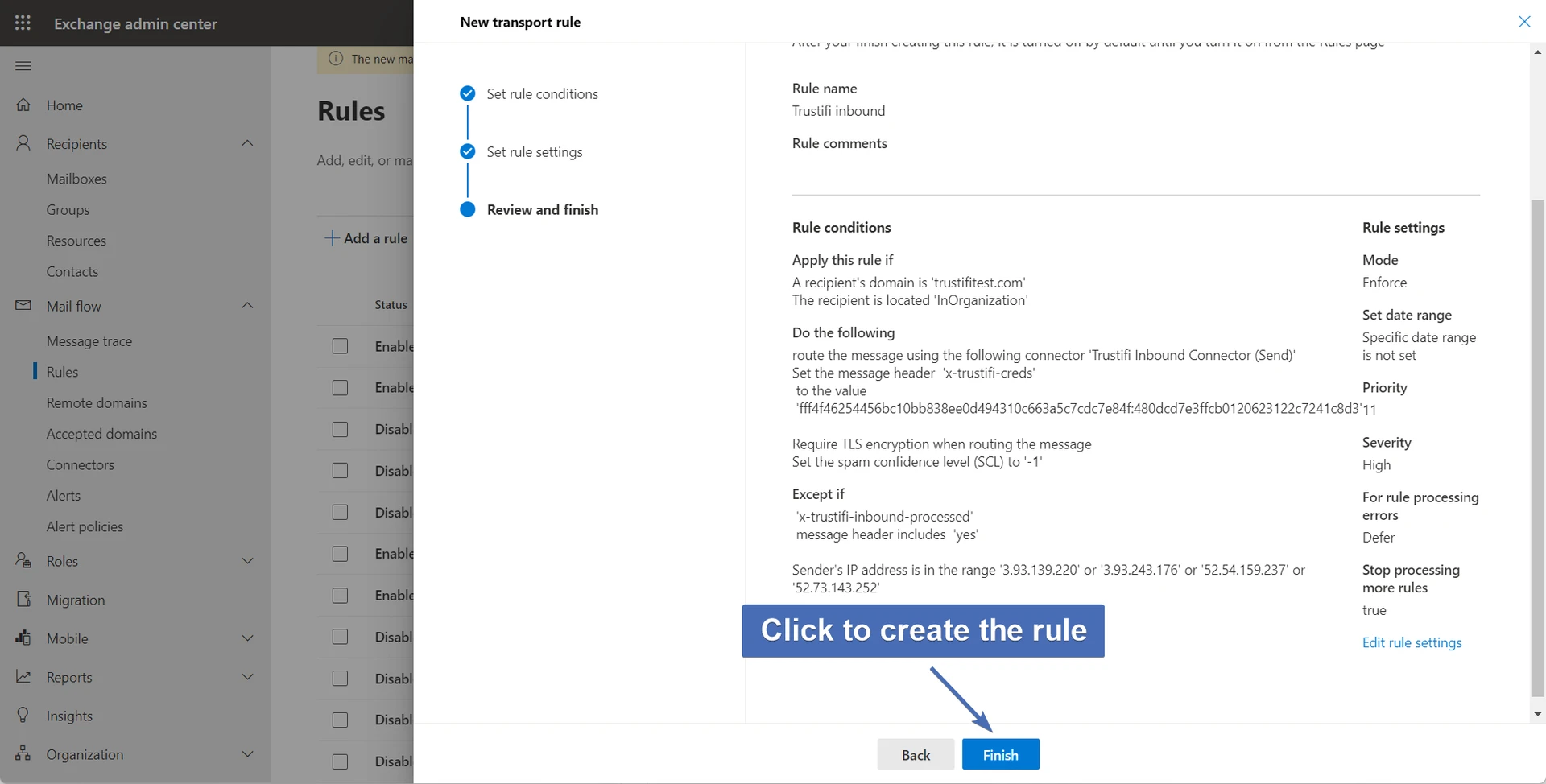

Step 57 – Review and finish
The next page will display a summary of the rule’s conditions, actions, exceptions, and settings.
Make sure that everything looks OK and click “Finish” to create the rule.
Step 58 – Verifying the rule priority order
If you are also connected to the Trustifi outbound relay, you will need to verify the 2 Trustifi mail flow rules are in the correct priority order.
To avoid issues with deliverability of internal emails, the Trustifi inbound mail flow rule has to come after the Trustifi outbound rule, as pictured below.
